How to design and build the 'gear' 'skew gear' 'helical gear' molds

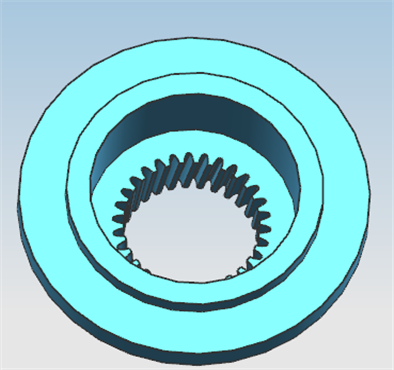

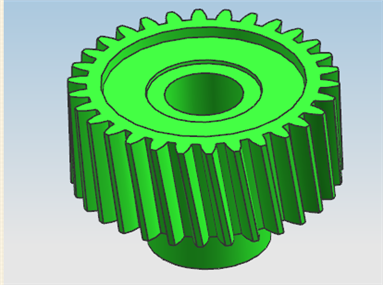

How to design the gear mold like this image?

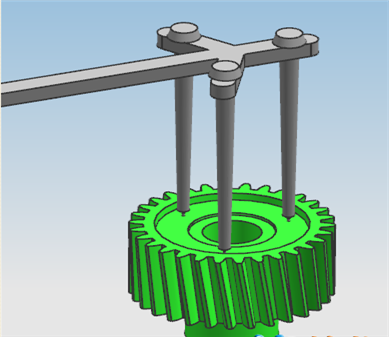

Let's check out. Pin-Point gate is first

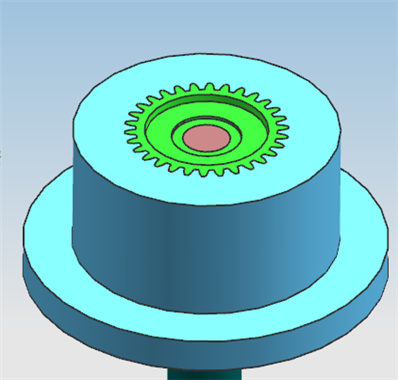

Make round insert in core side, which is easy for wire-cutting skews

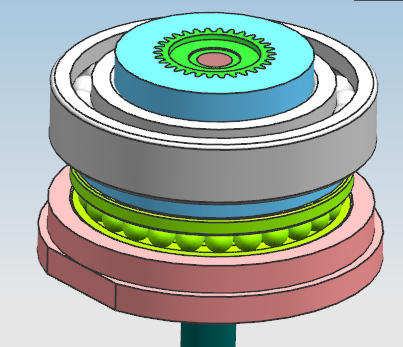

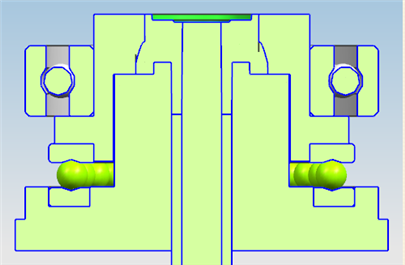

Thirdly, Add 2 more ball bearing to make sure the insert can be rotated.

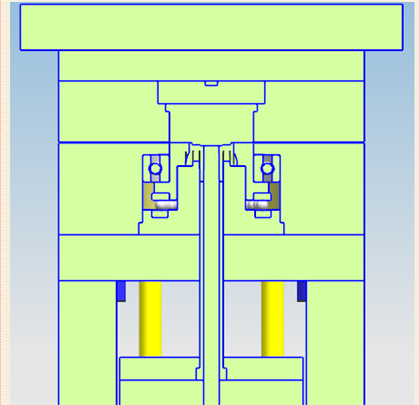

Finally, add a sleeve pin in the middle. Bingo.
